Solutions
Construction

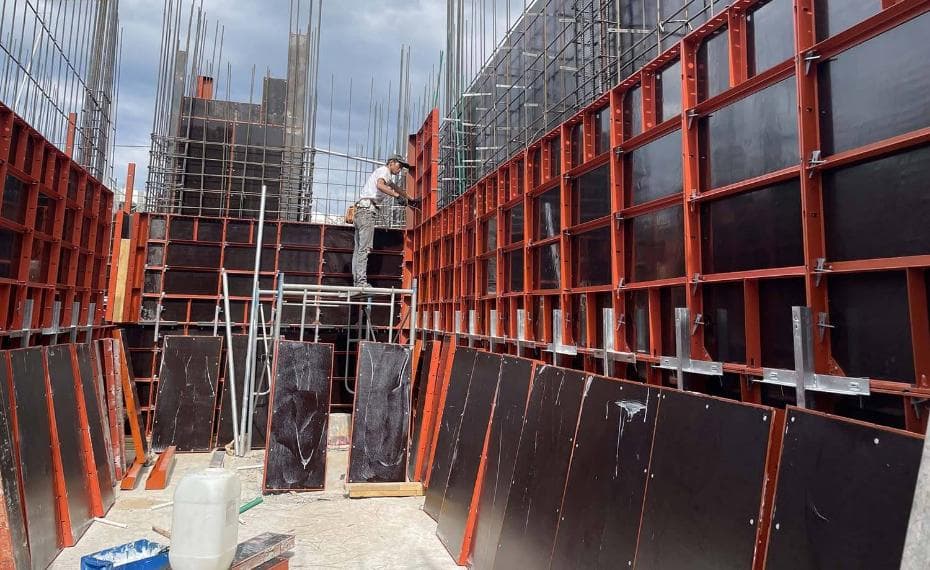

Wood panels for formwork and demanding construction applications.
What buyers specify first
- 01Surface finish
- 02Strength and stiffness
- 03Bonding and durability
- 04Repeat use
Product systems for this application
Side by side
The shortest way to rule one out. Full specifications are on each product page.
| Product | Typical specification | Surfaces / variants |
|---|---|---|
| Film-Faced Plywood | 1220×2440 (4' × 8') · 1250×2500 (49-3/16" × 98-7/16") · 1200×2400 (47-1/4" × 94-1/2") mm · Thickness 9–21 mm (3/8"–13/16") · WBP / melamine glue | Black phenolic film · Brown phenolic film · Anti-slip wire mesh · MDO overlay (medium density) |
| LVL — Laminated Veneer Lumber | Cut to your section · Structural & packing grades · Straighter than sawn timber | Structural grade · Packing grade · Scaffolding plank · Cut to drawing |
Technical specification
Measured values from production samples. Every line below is configurable — tell us the target and we build to it.

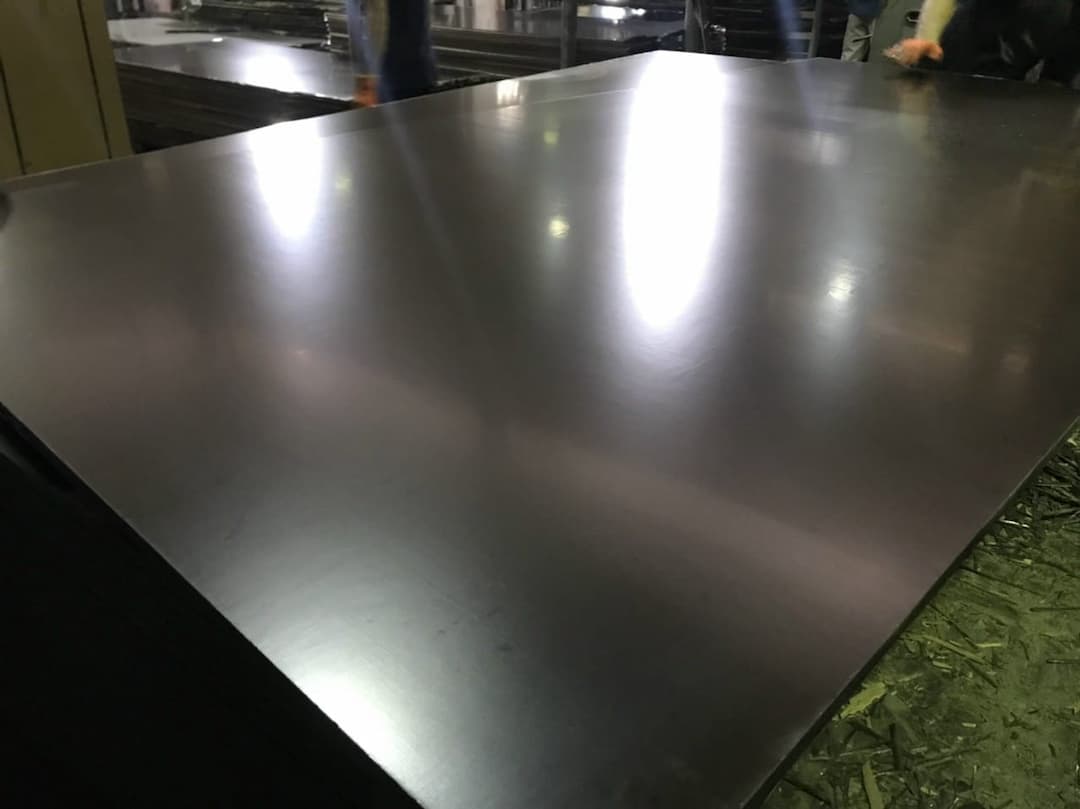

Film-Faced Plywood18 fields
- Core species
- Hardwood — acacia / eucalyptus, planted forest
- Panel sizes
- 1220×2440 mm (4' × 8') · 1250×2500 mm (49-3/16" × 98-7/16") · 1200×2400 mm (47-1/4" × 94-1/2")
- Thickness
- 9 – 21 mm (3/8" – 13/16")
- Surface options
- Dynea phenolic film (black / brown) · anti-slip wire mesh · MDO and HDO resin-impregnated overlay for the US market
- Film weight
- 140 / 165 / 185 / 220 gsm
- Glue / bond class
- WBP phenolic (PF) — Bond Class 3, exterior; melamine (MUF) also available
- Density
- 0.70 g/cm³ (tested, 9 mm PF)
- Moisture content
- 9.2 % (tested)
- Bending strength (MOR)
- 66.0 N/mm² parallel · 54.7 N/mm² perpendicular to face grain
- Formaldehyde emission
- 0.0273 mg/m³ (EN 13986) · 0.05 mg/m³ chamber method — E1 limit is 0.124 mg/m³
- Edge treatment
- Water-based acrylic edge sealing on all four edges
- Reuse target
- Designed for 8–15 pours under normal site conditions with edges resealed after cutting — a design target, not a guarantee
- Packaging
- Pallet packed, corner protection, PP strapping, plastic-wrapped; export marks per your instruction
- Loading reference
- One 40ft HC carried 853 sheets of 21 mm at 26,900 kg / 44 m³ on a real shipment — thick panels hit the weight limit before the volume limit
- Minimum order
- One 20ft or 40ft container per product line; specifications may be mixed within a line
- Lead time
- Quoted as a specific date with the price — varies by product, season and raw-material supply
- Incoterms
- FOB, CIF, CFR, EXW, DDP
- Private label
- Available — logo on panel face, custom marks and packaging
LVL — Laminated Veneer Lumber8 fields
- Range
- Structural LVL · MDF plain or melamine · finger-joint and edge-glued panels · furniture components to drawing · biomass wood pellets
- Production
- Some items consolidated from partner mills — stated openly on the quote
- Packaging
- Pallet packed, corner protection, PP strapping, plastic-wrapped; export marks per your instruction
- Loading reference
- One 40ft HC carried 853 sheets of 21 mm at 26,900 kg / 44 m³ on a real shipment — thick panels hit the weight limit before the volume limit
- Minimum order
- One 20ft or 40ft container per product line; specifications may be mixed within a line
- Lead time
- Quoted as a specific date with the price — varies by product, season and raw-material supply
- Incoterms
- FOB, CIF, CFR, EXW, DDP
- Private label
- Available — logo on panel face, custom marks and packaging
Values come from tested production samples. They describe what the line runs today, not a fixed guarantee — the specification on your order is agreed before production starts.
Documents that ship with the goods
Each certificate names the mill and product it covers, and the date it expires — so you can check it against your own order instead of taking a scan on trust.
FSC Chain-of-Custody
SGS Hong Kong
Purchase of FSC 100% logs and veneer; manufacture and sale of FSC 100% / FSC Mix veneer plywood, wood chips, peeled veneer, veneer MDF and planks (transfer system)
FSC Chain-of-Custody
SGS Hong Kong
Purchase of FSC 100%, FSC Controlled Wood logs, veneer and FSC Recycled impregnated papers; manufacture and sale of FSC 100%, FSC Mix and FSC Controlled Wood veneer, plywood and LVL (transfer system)
CE — EN 13986 plywood
Istituto Giordano
Hardwood-faced and film-faced plywood, thickness 3.6–30 mm, MUF and PF glue — structural use in dry, humid and external conditions
FSC Chain-of-Custody
SGS Hong Kong
Purchase of FSC 100% logs, peeled veneer, FSC Mix MDF and impregnated papers; manufacture and sale of FSC 100% peeled veneer, FSC 100% / FSC Mix veneer plywood and FSC Mix MDF (transfer system)
Send the specification, not just the product name
Tell us the application, the dimensions and the destination market. We confirm what is producible before quoting.
- Drawing or sample accepted
- Reply within 24 hours
- Documents matched to your market
- Sample length before the order
